Tempat asal: | Cina |
Nama merek: | BRITEC |
Nomor model: | BR-25M 4P |
Kuantitas min Order: | 100 Potongan/potongan |
---|---|
Kemasan rincian: | Pengemasan Ekspor |
Waktu pengiriman: | Dikirim dalam 15 hari setelah pembayaran |
Syarat-syarat pembayaran: | L/C, D/A, T/T, Western Union |
Menyediakan kemampuan: | 50000 Potongan/potongan Bulan |
merek: | BRITEC | Model: | BR-25M 4P |
---|---|---|---|
Nama barang: | Perangkat perlindungan lonjakan | Standar kelas: | Ketik 1+2+3 |
UC: | 275V | Iimp: | 25kA |
Polandia: | 4P | Kelas Perlindungan: | IP20 |
Suhu Operasional: | -40 ℃—80 ℃ | Bahan: | Termoplastik UL94-V0 |
Cahaya Tinggi: | 25KA T1 Surge Protector,Type1 4P Surge Protector,BRITEC Type 1 Surge Protection Device |

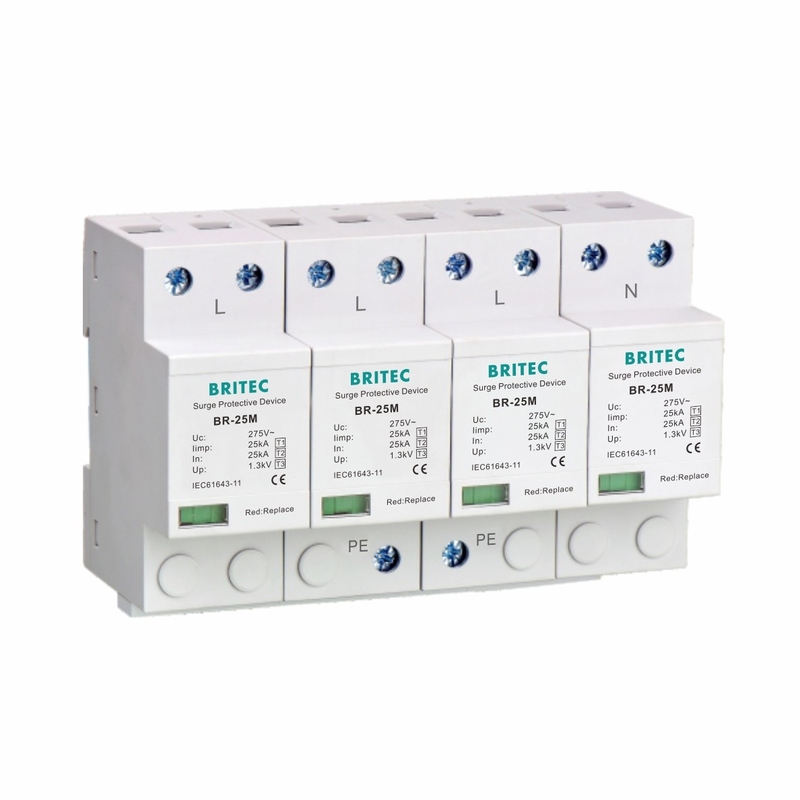

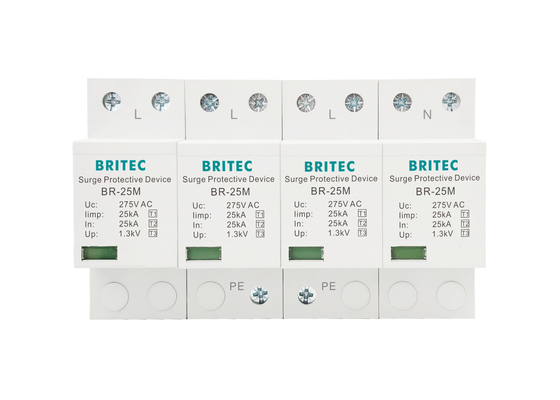

T1 Surge Protector 25KA 4P Surge Protection Device Presentation:
T1 Surge Protector 25KA 4P Surge Protection Device Technology characteristic:
BR-25M 4P | |
SPD classification according to EN61643-11 with 5M | Type 1 + Type 2 + Type 3 |
SPD classification according to IEC61643-11 with 5M | Class I + Class II + Class III |
Rated operating voltage Un | 400V |
Max. continuous operating a.c. voltage Uc | 275V |
Voltage protection level Up | ≤1.3kV |
Lightning impulse current (10/350us) Iimp | 25kA |
Nominal discharge current (8/20us) In | 25kA |
Maximum discharge current (8/20us) Imax | 100kA |
Response time tA | ≤25ns |
Cross-section area (Min.) | 4mm2 |
Cross-section area (Max.) | 35mm2 |
Max. backup fuse | 315A gG |
Operating temperature range Tu | -40℃—80℃ |
Relative humudity(25°C) | ≤95% |
For mounting on | 35mm Din rail |
Enclosure material | Thermoplastic UL94-V0 |
Dimension:
About us:
Wenzhou Britec Electric Co.,Ltd as a manufature established in year 2003, specilized in Surge arrester with more than 17 years. We are a high-tech enterprise of Zhejiang province, also passed ISO 9001.
Q1: Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity.
Q2: Are your surge protector supported for customization?
A: Yes, of course.
Q3: How can you ensure your After-sales Service?
A: We do it in strict accordance with the contract, so that customers can buy our products with confidence.
Q4: Are you a trading company or a manufacturer?
A: We are manufacturer and exporter in the industry, so we can supply product for you with Factory Price.
Kontak Person: Xu
Tel: +8615657751280
